Jaguar MK2 (Mark II)

Complete Trim Kit

Illustration Reference: 01 - 25

Materials: Leather, Vinyl, Wool, Hardura, Felt, Union Cloth, Moquette, Hardboard, Millboard, Foam, Metal, Scrim, Flocked Paper, Piping

• This complete trim kit includes all the main Trim Panels, Carpets and Flooring, Luggage / Boot / Trunk area and Re-Trim kits for the Jaguar Mark II (MK2) Saloon / Sedan model.
• Includes items 01 to 25 listed below.
• Does not include items listed as “Optional Extra” – such as the Seat Foam Paddings and inner Sunvisor units.

Door Panel Set

Illustration Reference: 01

Materials: Leather, Vinyl, Union Cloth, Hardboard, Foam, Metal, Plywood, Piping

• Pre-cut and trimmed Panels for your Front and Rear Door Panels.
• Includes pre-cut, sewn, piped and trimmed Pocket and Armrests for the Door Panels.
• Rear Armrest includes Ashtray Bracket metalwork.
• Includes double-lined High Frequency “Weld” Embossed Pattern on top of the Door Panels.

A Post Footwell Panels

Illustration Reference: 06

Materials: Leather, Vinyl, Millboard, Metal

• Pre-cut and trimmed Millboard Panels for the A Post Footwell Panels.
• Includes metal clip.

Upper A Post Panel

Illustration Reference: 24

Materials: Leather, Vinyl, Millboard, Foam

• Pre-cut loose material & millboard panel for the Upper A Post Footwell area.

B/C Post Panels

Illustration Reference: 07

Materials: Leather, Vinyl, Millboard, Foam

• Pre-cut & trimmed Millboard Panels for the B/C Post areas in between the Front & Rear Door Panels.

Cover Panels - Upper

Illustration Reference: 02

Materials: Leather, Hardboard, Foam, Plywood

• Pre-cut Leather & trimmed Hardboard panels for the upper Cover area of the Rear Door / Seat sides.

Cover Panels - Vinyl

Illustration Reference: N/A

Materials: Vinyl, Hardboard, Plywood

• Pre-cut Vinyl & trimmed Hardboard panels for the lower Cover area of the Rear Door / Seat sides.

Rear Parcel Shelf

Illustration Reference: 03

Materials: Leather, Vinyl, Hardboard, Foam

• Pre-cut & trimmed Hardboard Panel for the Rear Shelf area behind the Rear Seat.

Underdash Kit

Illustration Reference: 04

Materials: Leather, Vinyl, Millboard

• Pre-cut and trimmed Millboard Panel for the Underdash area.
• Includes pre-cut loose material for re-trimming your original metal panel.
• Differs between LHD and RHD.

Lower Bulkhead Cover

Illustration Reference: 05

Materials: Leather, Vinyl

• Pre-cut loose material for the Lower Rear Bulkhead area below the Rear Seat.

Dashboard Newspaper Tray Kit

Illustration Reference: 09

Materials: Moquette, Millboard

• Pre-cut & glued Moquette for re-trimming your Dash Board Newspaper Tray area.
• Black as Original.

Ctr Instr. Panel Re-Trim Kit

Illustration Reference: 10

Materials: Leather, Vinyl

• Pre-cut loose materials for re-trimming your Centre Instrument Panel area.
• Black as Original.

Furflex Kit

Illustration Reference: 25

Materials: Moquette, Furflex, Rubber

• Furflex material, with 8mm rubber piping insert, for attaching around your Front & Door Panels.
• 12 metres per car set.

Boot / Trunk Side Panels

Illustration Reference: 12

Materials: Millboard, Moulded Plastic

• Pre-cut, rivet and moulded Millboard panels for your Boot / Trunk sides.
• Includes moulded “dome” for the petrol pump.

Headliner Lining Kit

Illustration Reference: 21

Materials: Union Cloth, Scrim

• Pre-cut “West of England” Union Cloth for re-trimming your inner roof lining area.
• Includes pre-sewn loops for attaching to roof.
• Number of Loops varied between 5 Loops (“Early” models to November 1960) or 6 Loops (“Late” models post November 1960).
• Webasto Sunroof style differs, but we can cater for this also.
• Includes pre-cut loose material for re-trimming your Sunvisors.

Sunvisors Inners

Illustration Reference: 23

Materials: Moulded Plastic

• Pre-moulded plastic inner replacements for your Sunvisors.
• Includes a mirror on the Passenger side.
• Differs between RHD and LHD.

***Optional Extra***

Sunvisors (Fully Trimmed)

Illustration Reference: 23

Materials: Union Cloth, Moulded Plastic

• Fully trimmed Union Cloth Sunvisors units, with new moulded plastic inners.
• Includes a mirror on the Passenger side.
• Differs between RHD and LHD.

***Optional Extra***

Glove Box

Illustration Reference: 19

Materials: Union Cloth, Millboard

• Fully Trimmed Millboard Glove Box.
• Trimmed in Grey Wool Union Cloth.
• Differs for RHD and LHD models.

Trim Panel Fixing Kit

Illustration Reference: N/A

Materials: Metal

• Fixing Clips used to attach your main Trim Panels to the bodywork of your car.

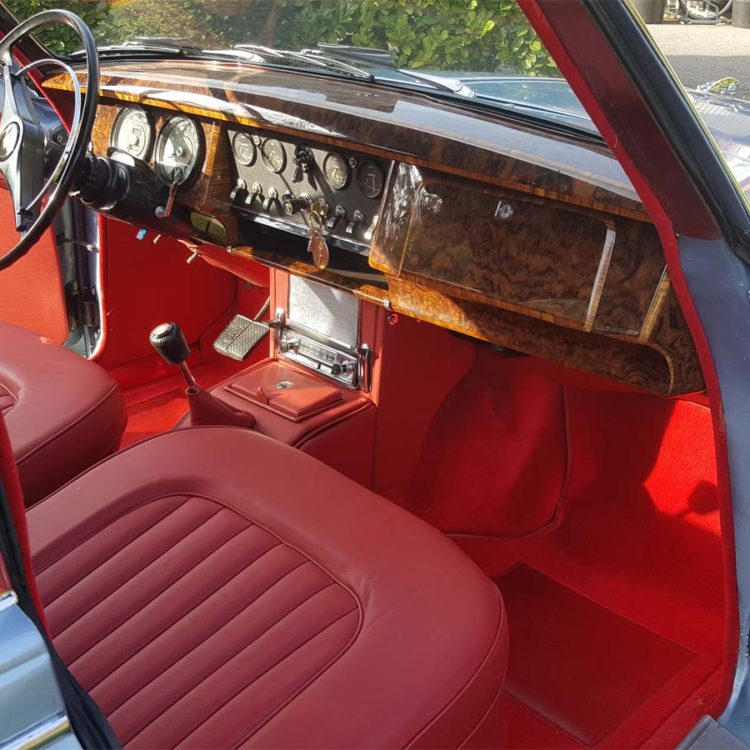

Front Seat Cover Kit

Illustration Reference: 14 / 15

Materials: Leather, Vinyl, Moquette, Scrim

• Fully Sewn material covers for Re-Trimming the Front Seat Cushions and Backrests.
• Differs between 7 Pleats (“Early” models) and 8 Pleats (“Late” models).
• Includes pre-cut loose and sewn materials for the Backrest backs.
• Includes pre-cut loose materials for the Picnic Tables.
• Includes pre-cut and sewn Moquette parts for re-trimming your Seat Mechanism areas.

Front Seat Backrest Blank

Illustration Reference: N/A

Materials: Hardboard

• Pre-cut Hardboard panels for the Front Seat Backrest backs.

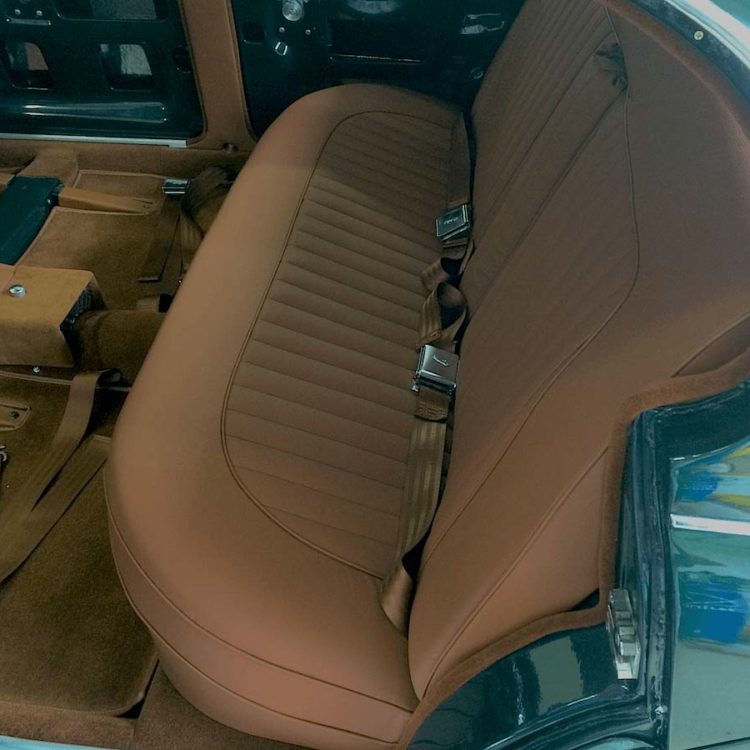

Rear Seat Cover Kit

Illustration Reference: 16

Materials: Leather, Vinyl, Moquette

• Fully Sewn material covers for Re-Trimming the Rear Seat Cushions and Backrests.
• Includes pre-cut & sewn 13mm piping for the upper section of the Rear Seat Backrest area.

Front Seat Cushion Foams

Illustration Reference: N/A

Materials: Foam

• Moulded Foams for the Front Seat Cushions covers.

***Optional Extra***

Front Seat Backrest Foams

Illustration Reference: N/A

Materials: Foam

• Pre-cut Foams for the Front Seat Backrest covers.

***Optional Extra***

Rear Seat Cushion Foam

Illustration Reference: N/A

Materials: Plywood

• Moulded Foams for the Rear Seat Cushion cover.

***Optional Extra***

Rear Seat Backrest Foam

Illustration Reference: N/A

Materials: Foam

• Moulded Foams for the Rear Seat Backrest cover.

***Optional Extra***

Ctr Console Re-Trim Kit

Illustration Reference: 17

Materials: Leather, Vinyl, Moquette, Foam

• Pre-cut loose & sewn Vinyl & Leather & 3mm foam for re-trimming your Centre Console and speaker areas.
• Includes pre-sewn leather Gear Lever Gaitor (Manual only).
• Differs between Manual and Automatic Gearboxes.

Seat Wadding Kit

Illustration Reference: N/A

Materials: Foam

• Used to “pad out” small areas of the Seat Covers that the Foams cannot fill, for best results.

***Optional Extra***

Seat Clips

Illustration Reference: N/A

Materials: Metal

• “U” Shaped Black Seat Clips, to help Re-Trimming your Seat Covers.

***Optional Extra***

Carpet Set

Illustration Reference: 08 / 20

Materials: Vinyl, Wool, Hardura

• Pre-cut, and edged with Binding, Carpet pieces for the main cockpit of your car.
• Binding / Edging to original specification.
• Includes self coloured storvic or hardura heelpads on Driver and Passenger Front Floors.
• Includes pre-cut loose materials for the cross member areas.
• Differs between LHD / RHD and Automatic / Manual Transmission Gearboxes.
• Differs between 1 piece and 2 piece Front Floor set ups.

2 Piece Front Floors – “Early” models (to approx. June 1965) – Accelerator / Throttle Pedal not attached to Floor – purely hanging down.

1 Piece Front Floors – “Late” models (from approx. June 1965 onward) – Accelerator / Throttle Pedal attached to Floor.

Underfelt Kit

Illustration Reference: 08 / 20

Materials: Felt

• Pre-cut Felt Sound Proofing for under the carpets.
• Differs between Automatic and Manual Transmission Gearboxes.

Boot / Trunk Mat

Illustration Reference: 13

Materials: Wool, Hardura

• Pre-cut and edged Hardura material for your Boot Trunk floor area.
• Black as Original.
• Other colours and materials available.

Carpet Fixing Kit

Illustration Reference: N/A

Materials: Moulded Plastic

• Fixing clips used to attach your Carpet Set to the bodywork of your car.
